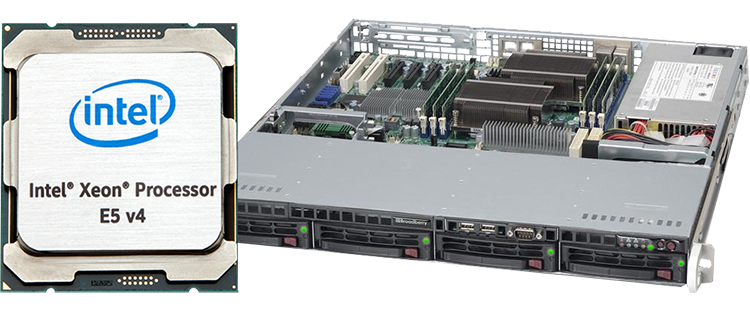

Perfect Enterprise-Class Servers the CyberServe XE5 2600 rack mount range are based on dual Intel Xeon E5 2600 v4 processors.
Delivering significant benefits in performance, power efficiency, virtualisation and security. Servers are configurable with up to 1.5TB DDR4 RAM and 44 processing cores.
Pedestal/Tower Server, Intel Xeon E5 v4 Series, Dual Processor, 4x Hot Swap SAS/SATA Drive Bays, Dual Gigabit LAN, On Board Graphics
Intel Xeon E5 V4 Series, Dual Xeon E5 Processor, 1U Short Depth Server, Dual Gigabit LAN, 2 Drive bays
Short Depth 2U Server, Intel Xeon E5 v4 Series, Dual Processor, 3x Internal Drive Bays, Redundant Power Supplies
Intel Xeon E5 V4 Series, Dual Xeon E5 Processor, 1U Server, Very Short Depth, Dual Gigabit LAN, 2 Drive bays, IPMI Remote Management
Intel Xeon E5 v4 Series, Dual Xeon Processor, 1U Rackmount Server, 4x Hot Swap Drive Bays
Intel Xeon E5 V4 Series, Dual Xeon E5 Processor, 1U Server with lots of Storage Capacity, Dual Gigabit LAN, 8 Drive bays
Intel Xeon E5 v4 Series, Dual Xeon E5 Processor, 1U Server, Redundant Power Supply, Dual Gigabit LAN, 4 Drive bays
Short Depth, Front I/O, Intel Xeon E5 v4 Series, Dual Processor, 3x Hot Swap Drive Bays
2U, Dual Intel Xeon E5 v4 Series Processors, Rackmount Server with Redundant Power Supply, 16 hot swap drive bays
3U Server, Intel Xeon E5 v4 Series, Dual Xeon E5 Processors, 8x Hot Swap Drive Bays
Intel Xeon E5 v4 Series Processor, 2U Rackmount Server, 8 x Hot Swap Drive Bays, Dual Processor
4U or Tower Style, Xeon E5 v4 Series, Dual Processor, 8x Hot Swap Drive Bays
Intel Xeon E5 v4 Series, Dual Xeon E5 Processor, 1U Server, Redundant Power Supply, Dual Gigabit LAN, 8 Drive bays
Multi-Award Winning 12Gb SAS, Intel Xeon E5-2600 v4 Server
Intel Xeon E5 v4 Series Processor, 2U Rackmount Server, 12x Hot Swap Drive Bays, Dual Processor
Dual Intel Xeon E2600v4 Series Processors, Based on Intel R2224WTTYSR Server, Dual 10GbE LAN, 1100W Redundant power Supply, Enterprise-Class I/O, Built-in Discrete Management.
2U Intel Xeon E5 Series, Dual Xeon E5 Processor, 12x Hot Swap SAS/SATA Drive Bays
Our PC PRO Recomended 1.6 Million IOPS Capable Server is designed for ultimate IOPS such as database appliances
2U Intel Xeon E5 v4 Series, Dual Xeon E5 Processor, 24x Hot Swap SAS/SATA Drive Bays
3U Rackmount Server, Dual Intel Xeon E5 v4 CPU, 16x Hot Swap SAS/SATA Drive Bays
4U Intel Xeon E5 v4 Series, Dual Xeon E5 Processor, 24x Hot Swap SAS/SATA Drive Bays
GPU Computing 4U Supercomputer, 8x Tesla, Xeon Phi or GTX-Titan GPU Cards
4U Intel Xeon E5 v4 Series, Dual Xeon E5 Processor, 36x Hot Swap SAS/SATA Drive Bays (24 bays at Front, 12 Bays at Rear)
Configure a High-Density Broadberry MicroCloud Server Server 5038MR-H8TRF
Our range of CyberServe XE5-2600 servers, based on the Intel Xeon E5 2600 v4 family of processors delivers significant advantages over the v3 range it replaces.
The E5-2600 v4 range boasts ground breaking new features such as more cores, more memory bandwidth, more cache, and more server-focused features. All this results in our v4 range of CyberServe XE5 servers being significantly faster than the v3 range.
| Features | Xeon E5-2600 v3 | Xeon E5-2600 v4 |
|---|---|---|
| Cores Per Socket | Up to 18 | Up to 22 |
| Threads Per Socket | Up to 36 threads | Up to 44 threads |
| Last-Level Cache | Up to 45 MB | Up to 55 MB |
| QPI Speed (GT/s) | 2x QPI 1.1 channels 6,4,8.0, 9.6 GT/s | |
| PCIe Lanes | 40 / 10 / PCIe 3.0 (2/5, 5, 8 GT/s) | |
| Memory Population | 4 channels of up to 3 RDIMMs or 3 LRDIMMs | +3DS LRDIMM |
| Memory RAS | ECC, Patrol Scrubbing, Demand Scrubbing, Sparing, Mirroring, Lockstep Mode x4/x8 SDDS | +DDR4 Write CRC |
| Max Memory Speed | Up to 2133 | Up to 2400 |
| TDP (W) | 160 (CyberStation Workstations only), 145, 135, 120, 105, 90, 85, 65, 55 | |
The Broadberry CyberServe XE5 range of rackmount server solutions based on dual Intel Xeon E5 2600® v4 range of processors boast up to 2 processors per server, that's 44 cores with 55mb of cache. These enterprise-class servers are great for demanding and RAM intensive enterprise applications such as Technical Computing, Communications, Cloud Computing and Virtualisation.
The new Intel Xeon E5 2600 v4 family of processors helps address the growing demands placed on infrastructure, from supporting business growth to enabling new services faster.
This latest generation of processors allow for powerful, efficient and flexible data centres by supporting a Software-Defined Infrastructure (SDI) to deal with the imminent requirement of more flexibility with better levels of automation and orchestration. The Intel Xeon E5-2600 v4 product family also provides significant benefits in virtualisation, performance, security and power efficiency.
Based on dual Intel Xeon E5 2600 v4 processors and configurable with up to 1.5TB of RAM, Broadberry Cyberserve rack server solutions are ideal for these applications:
From virtualisation and cloud computing solutions to design automation or real-time financial transactions, you'll be delighted by better than ever performance no matter what tasks you face.
Your investment in industry standard Intel technology combined with our latest server technology will future-proof your data centre with infrastructure that grows with your business.
| # of Cores | # of Threads | Cache | Clock Speed | Max Turbo Frequency | System Bus | TDP | |
|---|---|---|---|---|---|---|---|
| Intel® Xeon® E5-2699 v4 based servers | 22 | 44 | 55 MB Intel® Smart Cache | 2.2 GHz | 3.6 GHz | 9.6 GT/s | 145 W |
| Intel® Xeon® E5-2695 v4 based servers | 18 | 36 | 45 MB Intel® Smart Cache | 2.1 GHz | 3.3 GHz | 9.6 GT/s | 120 W |
| Intel® Xeon® E5-2660 v4 based servers | 14 | 28 | 35 MB Intel® Smart Cache | 2 GHz | 3.2 GHz | 9.6 GT/s | 105 W |
| Intel® Xeon® E5-2680 v4 based servers | 14 | 28 | 35 MB Intel® Smart Cache | 2.4 GHz | 3.3 GHz | 9.6 GT/s | 120 W |
| Intel® Xeon® E5-2683 v4 based servers | 16 | 32 | 40 MB Intel® Smart Cache | 2.1 GHz | 3 GHz | 9.6 GT/s | 120 W |
| Intel® Xeon® E5-2687W v4 based servers | 12 | 24 | 30 MB Intel® Smart Cache | 3 GHz | 3.5 GHz | 9.6 GT/s | 160 W |
| Intel® Xeon® E5-2690 v4 based servers | 14 | 28 | 35 MB Intel® Smart Cache | 2.6 GHz | 3.5 GHz | 9.6 GT/s | 135 W |
| Intel® Xeon® E5-2697 v4 based servers | 18 | 36 | 45 MB Intel® Smart Cache | 2.3 GHz | 3.6 GHz | 9.6 GT/s | 145 W |
| Intel® Xeon® E5-2697A v4 based servers | 16 | 32 | 40 MB Intel® Smart Cache | 2.6 GHz | 3.6 GHz | 9.6 GT/s | 145 W |
| Intel® Xeon® E5-2698 v4 based servers | 20 | 40 | 50 MB Intel® Smart Cache | 2.2 GHz | 3.6 GHz | 9.6 GT/s | 135 W |
| Intel® Xeon® E5-2658 v4 based servers | 14 | 28 | 35 MB Intel® Smart Cache | 2.3 GHz | 2.8 GHz | 9.6 GT/s | 105 W |
| Intel® Xeon® E5-2650L v4 based servers) | 14 | 28 | 35 MB Intel® Smart Cache | 1.7 GHz | 2.5 GHz | 9.6 GT/s | 65 W |
| Intel® Xeon® E5-2650 v4 based servers | 12 | 24 | 30 MB Intel® Smart Cache | 2.2 GHz | 2.9 GHz | 9.6 GT/s | 105 W |
| Intel® Xeon® E5-2648L v4 based servers | 14 | 28 | 35 MB Intel® Smart Cache | 1.8 GHz | 2.5 GHz | 9.6 GT/s | 75 W |
| Intel® Xeon® E5-2628L v4 based servers | 12 | 24 | 30 MB Intel® Smart Cache | 1.9 GHz | 2.4 GHz | 8 GT/s | 75 W |
| Intel® Xeon® E5-2630L v4 based servers | 10 | 20 | 25 MB Intel® Smart Cache | 1.8 GHz | 2.9 GHz | 8 GT/s | 55 W |
| Intel® Xeon® E5-2667 v4 based servers | 8 | 16 | 25 MB Intel® Smart Cache | 3.2 GHz | 3.6 GHz | 9.6 GT/s | 135 W |
| Intel® Xeon® E5-2623 v4 based servers | 4 | 8 | 10 MB Intel® Smart Cache | 2.6 GHz | 3.2 GHz | 8 GT/s | 85 W |
| Intel® Xeon® E5-2630 v4 based servers | 10 | 20 | 25 MB Intel® Smart Cache | 2.2 GHz | 3.1 GHz | 8 GT/s | 85 W |
| Intel® Xeon® E5-2618L v4 based servers | 10 | 20 | 25 MB Intel® Smart Cache | 2.2 GHz | 3.2 GHz | 8 GT/s | 75 W |
| Intel® Xeon® E5-2637 v4 based servers | 4 | 8 | 15 MB Intel® Smart Cache | 3.5 GHz | 3.7 GHz | 9.6 GT/s | 135 W |
| Intel® Xeon® E5-2640 v4 based servers | 10 | 20 | 25 MB Intel® Smart Cache | 2.4 GHz | 3.4 GHz | 8 GT/s | 90 W |
| Intel® Xeon® E5-2620 v4 based servers | 8 | 16 | 20 MB Intel® Smart Cache | 2.1 GHz | 3 GHz | 8 GT/s | 85 W |
| Intel® Xeon® E5-2608L v4 based servers | 8 | 16 | 20 MB Intel® Smart Cache | 1.6 GHz | 1.7 GHz | 6.4 GT/s | 50 W |
| Intel® Xeon® E5-2643 v4 based servers | 6 | 12 | 20 MB Intel® Smart Cache | 3.4 GHz | 3.7 GHz | 9.6 GT/s | 135 W |
| Intel® Xeon® E5-2609 v4 based servers | 8 | 8 | 20 MB Intel® Smart Cache | 1.7 GHz | 6.4 GT/s | 85 W | |
| Intel® Xeon® E5-2603 v4 based servers | 6 | 6 | 15 MB Intel® Smart Cache | 1.7 GHz | 6.4 GT/s | 85 W |
2600 v4 Servers Do More with LessThe recent Intel Xeon processor E5-2600 v4 range is a powerful solution that deliver flexibility across diverse workloads. These processors are built for architecting next-generation data centres that run on software defined infrastructure optimised for performance, efficiency and agile services delivery across cloud-native and traditional applications. Workloads for storage, HPC, cloud and networking are supported.
Ready for the most demanding enterprise applications, the Broadberry CyberServe XE5 2600® range can be configured with up to 1.5TB of memory.
Designed for optimal performance, the dual- range of CyberServe XE5 2600® servers support the Intel Xeon® E5-2600 v4 family
Powered by the latest Intel Xeon E5 2600 v4 family of Processors, the Broadberry CyberServe XE5 2600 range boosts performance by up to 50% over previous generation Xeons.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe XE5 2600® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
The Broadberry CyberServe XE5 2600® range of rackmount servers intelligently deliver up to 45% more performance per watt to the CPU, increasing computing power whilst maintaining maximum energy efficiency.
All Broadberry CyberServe XE5 2600 rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP
All components in the Broadberry CyberServe E5 2600 range are sourced from leading manufacturers who take reliability as seriously as we do.
The Broadberry CyberServe E5 2600 range boasts DDR4 memory, up to twice as fast and delivering 50% more bandwidth and 40% more energy efficiency than DDR3.
Our Rigorous TestingBefore leaving our workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.
Un-Equaled FlexibilityOur main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.
