Perfect Enterprise-Class Servers the CyberServe SP2 Dual Xeon rack mount range is based on Intel Xeon Scalable Processor family.
Delivering significant benefits in performance, power efficiency, virtualisation, and security. Servers are configurable with up to 3TB DDR4 RAM and 56 processing cores
Short Depth, Redundant Power Option, Dedicated Remote Management port with IPMI & Remote KVM Management
Short Depth 2U Server, Dual Intel Xeon Scalable Processor, 3x Internal Drive Bays
Redundant Power Option, Dedicated Remote Management port with IPMI & Remote KVM Management
Redundant Power Option, Dedicated Remote Management port with IPMI & Remote KVM Management
6 x PCIE Low Profile, Redundant Power Option, Dual Gigabit, 8+2 x Internal Drives, Dedicated LAN for IPMI Remote Management & Remote KVM
3 x PCIE Slots (2x FHHL, 1x LP), Redundant Power, Dual Gigabit or 10GbE LAN, Dedicated LAN for IPMI Remote Management & Remote KVM
2U, Dual Intel Xeon Scalable Procesor, 12x 3.5" Hot Swap Drives
3x PCIE Slots (2x FHHL, 1x LP), Optional Redundant Power, Dual 10GbE LAN, IPMI Remote Management & KVM
2U, Dual Intel Xeon Scalable Procesor, 24x 2.5" Hot Swap Drives, Dual 10Gbe Ports, Single 1300W PSU
Redundant Power, Dedicated Remote Management Port with Fully Featured IPMI & Remote KVM Management
Redundant Power, Dedicated Remote Management Port with Fully Featured IPMI & Remote KVM Management
2 Nodes in 1U, Redundant Power Option, Perfect for Mission-Critical Applications and High Availability Stoage.
Redundant Power, Dedicated Remote Management Port with Fully Featured IPMI & Remote KVM Management
High Performance Computing Server - Dual Intel Xeon Scalable Processor Series, 2U Server, 8x GPU Cards
GPU Computing Pedestal Supercomputer, 4x Tesla or GTX-Titan GPU Cards
GPU Computing 2U Supercomputer, 4x Tesla, AMD or GTX-Titan GPU Cards
Ultra High-Density GPU Computing 1U Supercomputer, 4x Tesla or GTX-Titan GPU Cards - 20,000 CUDA Cores
24 + 12 Bays at Rear, Redundant Power, Dedicated Remote Management Port with IPMI & Remote KVM Management
Tyan High Density Quad Node Server for HPC
4 Node 2U Server, Optimised for Mission Critical Applications and HPC, Configure with 2.5” Hot-swappable Drive Bays.
4 Node 2U Xeon Server, Optimised for Mission Critical Applications and HPC, Configure with 3.5” Hot-swappable Drive Bays.
8x PCIE x16, Redundant 2400W Power, Dual Gigabit
20x PCI-E 3.0 x16 supports up to 20x single width GPU, 24x hot-swap 3.5" drives, 2x 10GBase-T LAN port
8 Node 4U Server, Optimised for Mission Critical Applications and HPC, Configure with 2.5” Hot-swappable Drive Bays.
With up to 2 processors per server and boasting up to 56 cores, 112 threads and 96 lanes of PCIe, the Broadberry CyberServe SP2 range of rackmount server solutions is based on dual Intel Xeon Scalable Processors. This makes them a superb choice for a huge variety of applications, ranging from business servers to the most demanding processor and RAM intensive applications such as database management and analytics, virtualisation and cloud environments.
Based on the Intel Xeon Processor Scalable family, configurable with up to 3TB DDR4 RAM and capable of supporting up to 12 DIMMS per CPU, the Broadberry CyberServe SP2 range of server solutions are optimised for these applications:
Re-designed from the ground up for huge improvements, the era-defining Intel Xeon SP Processor family goes above and beyond the standards set by previous generations (Intel Xeon E5 and E7 V4). Find more information on the Xeon Scalable range below.
 |
 |
 |
 |
|---|---|---|---|
| Entry Ideal for smaller businesses, Intel Xeon Bronze processors are developed to work best with basic storage servers. |
Mid The Intel Xeon Silver range is optimised for middling IT organisations that are still developing. It delivers the speed and security you need for your data centre. |
High
Intel Xeon Gold processors provide high performance and high-level reliability. Featuring hardware-enhanced security, this option is ideal for demanding and high intensity workloads. |
Enterprise Intel Xeon Platinum processors provides arguably the best performance in the industry for mission critical and cloud workloads, AI, machine learning and real time analytics. It also delivers humungous leaps in I/O, memory, storage and network technologies. |
| up to 8 Cores | up to 12 Cores | up to 22 Cores | up to 28 Cores |
| up to 2 Sockets | up to 2 Sockets | up to 4 Sockets | up to 8+ Sockets |
| up to 1.5TB | up to 1.5TB | up to 6TB | up to 12TB |
The CyberServe Xeon-SP range of business class servers has been designed and built from the ground up for modern data centre applications.
Driven by the Intel Xeon Scalable processor family, these flexible servers are able to excel across applications. With this range you benefit from gaining insights from advanced real time analytics as well as emerging imperatives like artificial intelligence, 5G, autonomous driving and more.
Adding a server from this range to your data centre will allow you to enjoy the ability to take advantage of new opportunities discovered via advanced, data fueled methods.
| Intel Xeon Processor E5-2600 v4 | Intel Xeon Scalable Processor | |
|---|---|---|
| Cores Per Socket | Up to 22 | Up to 28 |
| Threads Per Socket | Up to 44 threads | Up to 56 threads |
| Last-level Cache (LLC) | Up to 55 MB | Up to 38.5 MB (non-inclusive) |
| QPI/UPI Speed (GT/s) | 2x QPI channels @ 9.6 GT/s | Up to 3x UPI @ 10.4 GT/s |
| PCIe* Lanes /Controllers /Speed(GT/s) | 40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s) | 48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s) |
| Memory Population | 4 channels of up to 3 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
6 channels of up to 2 RDIMMs, LRDIMMs, or 3DS LRDIMMs |
| Max Memory Speed | Up to 2400 | Up to 2933 |
| TDP (W) | 55W-145W | 70W-205W |

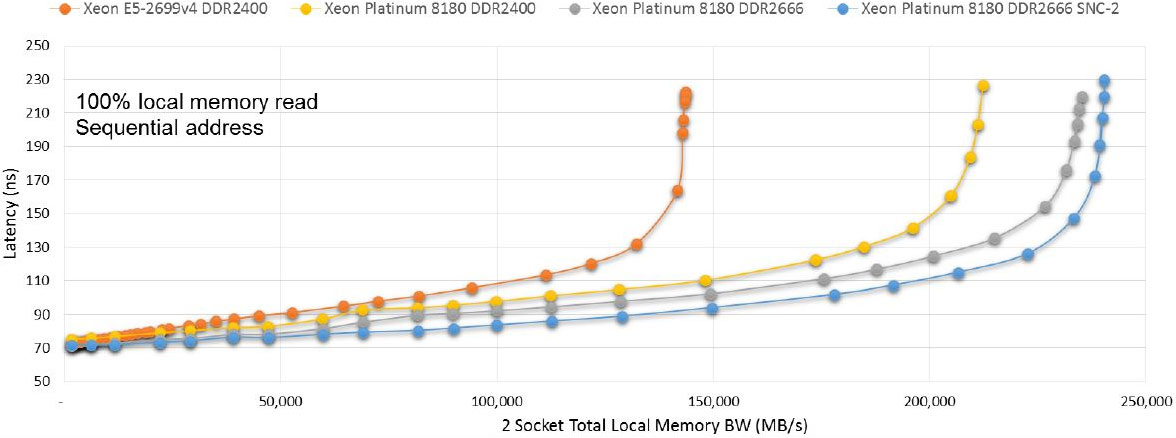

The CyberServe SP2 range is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU, representing a 50% increase in memory bandwidth. In addition to this it also means a 10% speed boost per channel with the newly supported DDR4-2666 MHz memory.

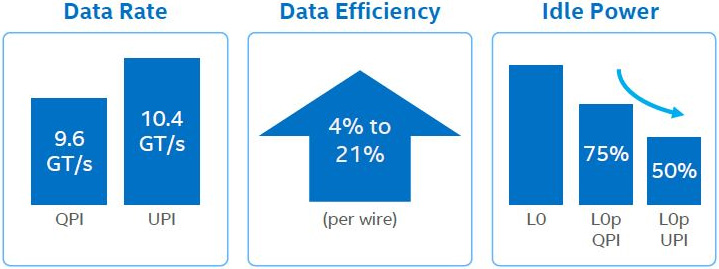

On higher end models the platform is scalable up to 4 and 8 sockets as well as more I/O and memory bandwidth. With the new standards set by the leap in system capability it became clear that the time had come for Intel to replace the QPI. That replacement comes in the form of Intel Ultra Path Interconnect (Intel UPI).
The Xeon Scalable Processor family features breakthrough performance and possesses the industry leading memory and I/O capacity necessary to substantially eliminate performance bottlenecks. The Xeon Scalable performance is a big contributor to the strong performance of the overall system.
Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment. Intel QAT offers noteworthy increases in the performance and efficiency of standard platform solutions.
The Intel Xeon Scalable processors the Broadberry CyberServe SP2 range is based on provide a degree of flexibility and performance that allows you to handle business server and hosting server demands.
Our Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies and features that will aid in safeguarding your system.
Intel Quick Assist Technology delivers a software-enabled base for security and authentication. Intel Key Protection Technology is found within Intel Xeon Scalable processors, enabled via Intel QAT. Intel KPT is on hand to help with secure private key management.
These features provide an immensely vital foundation for secure IT. They are necessary to handle the ever-increasing and evolving threats across both physical and virtual infrastructures.
As leading providers of enterprise grade server and storage solutions over the past three decades, we’ve supplied some of the world’s largest organisations including the likes of Sky, Toshiba, the University of Oxford, the University of Cambridge, Disney, the BBC, NASA and many more.
Our powerful online configurator allows you to create your CyberServe server to perfectly fit the needs and requirements of your business. With a wide array of features, hundreds of possible configuration combinations and a meticulous design process that optimises them directly for you, our servers are built to help your business thrive.
Our Rigorous TestingBefore leaving our workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.
Un-Equaled FlexibilityOur main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.
We have established ourselves as one of the biggest storage providers in the UK, and since 1989 supplied our server and storage solutions to the world's biggest brands. Our customers include:
