3U Server, Intel Xeon E5 v4 Series, Dual Xeon E5 Processors, 8x Hot Swap Drive Bays
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
Designed for optimal performance, the dual-processor CyberServe-XE5-308S v4 supports the latest format Intel Xeon® processor E5-2600 v4
Powered by the latest Intel Xeon E5 2600 v4 family of Processors, the CyberServe-XE5-308S v4 boosts performance by up to 50% over previous generation Xeons.
Boasting Intel Integrated I/0 on the processor, the CyberServe-XE5-308S v4 accelerates data availability to the processing cores, reducing latency by up to 30%.
The CyberServe-XE5-308S v4 rackmount server intelligently delivers up to 45% more performance per watt to the CPU, increasing computing power whilst maintaining maximum energy efficiency.
The CyberServe-XE5-308S v4 has been carefully crafted to ensure full compatibility with VMWare, making it an ideal choice for use as a virtualisation server
The CyberServe-XE5-308S v4 is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

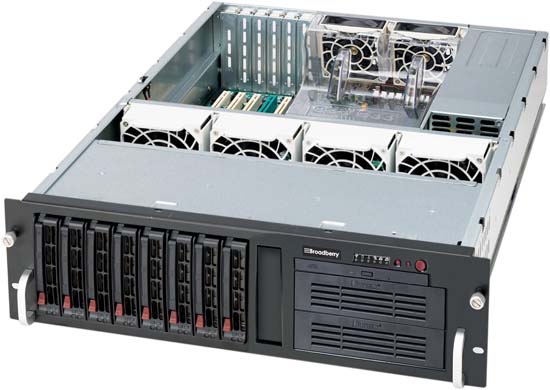

The CyberServe XE3-308S is a high density 3U rackmount server with 8x 3.5" hard drives, and 2 x 5.25" Drive bays.
Based on the Intel Xeon E5 v4 series, the CyberServe XE5-308s is a dual processor server supporting up to 8 modules of DDR4 ECC RAM Modules - upto 512Gb RAM.
The CyberServe-XE5-308S v4 is a 3U rackmount server configurable with 2x Xeon E5 2600v4 Dual Processor series range of processors. Built using the latest enterprise-class server technology, the CyberServe-XE5-308S v4 has 8x 2.5", 3.5 SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 16x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The CyberServe-XE5-308S v4 boasts as just a few of its core features.
Powered by Intel Xeon E5 2600 v4 Processors
Powered by 2x Intel Xeon E5-2600 v4 processors, the boasts the latest processor technologies you'd expect from an enterprise-class server, including accelerating critical workloads such as database transactions and vector operations and more.
Key Features
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse data centre workloads.
With the full line-up of Intel Xeon E5-2600 v4 processors to choose from, the can be configured with up to 44 high-performance processing cores or 88 hardware threads, making this power-house server the ideal choice for a wide range of business applications from virtualisation to high-performance computing.
These processors are designed to help IT address the ever-growing demand for increased performance, agility, operational efficiency, scale-on demand and security throughout their server, storage and network infrastructure while minimising their total cost of ownership.
If you're upgrading from the past generation of E5 processors (v3 range), you'll notice major advances in processor technology in the resulting in up to 47% faster performance than the previous generation of servers powered by the v3 range.
The new v4 range of processors offers extra cores, a smattering of architectural refinements and performance advancements such as up to 55MB of last-level cache, support for 2400MHz DDR4 memory and up to 2kb of data L1 cache per processing core.
The powered by Intel® Xeon® processor E5-2600 v4 product family offers enterprises, cloud service providers and telecommunication service provider's high performance and value, while accelerating their move toward the next-generation efficiencies of software defined infrastructure.
Built for Virtualisation
Configured with the E5-2600 v4 processor and offering plenty of high-performance memory, the is built for virtualisation.
Intel® Virtual Machine Control Structure (VMCS) shadowing extends root virtual machine monitor (VMM)-like privileges to a guest VMM to provide more flexible support for legacy code and deep security monitoring. Additional virtualisation enhancements enable fewer and faster transitions to the VMM through Posted Interrupts and other innovations, so more compute cycles can be devoted to virtual machine performance.
Support for Page Modification Logging has also been added to enable high-end availability for virtual machines while reducing performance overhead.
Process Data Faster with DDR4 Memory
Configurable with DDR4 memory, the CyberServe-XE5-308S v4 uses the latest enterprise-grade memory technology which offers 50% more bandwidth and 40% better energy efficiency than servers configured with DDR3 ram, resulting in more speed, more bandwidth and better efficiency computing.
Typically a server's greatest limitation is memory, especially in the memory-dependant applications the CyberServe-XE5-308S v4 has been designed to excel in such as cloud-computing, virtualisation and HPC. The CyberServe-XE5-308S v4 overcomes this traditional problem by doubling memory capacity of servers built on DDR3 memory in the same amount of DIMM slots making the CyberServe-XE5-308S v4 a super-dense server platform ready to perform in the most demanding applications.
DDR4 memory also builds on the CyberServe-XE5-308S v4 green credentials as power savings reach up to 40% over older generation memory.
The added benefit of hot-swap hard drives means that the CyberServe-XE5-308S v4 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the CyberServe-XE5-308S v4 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.Storage Technology
The CyberServe-XE5-308S v4 supports 8x 2.5", 3.5 desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.
The added benefit of hot-swap hard drives means that the CyberServe-XE5-308S v4 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.Configure for your Network
The CyberServe-XE5-308S v4’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the CyberServe-XE5-308S v4 to match your application I/O demands and network infrastructure with up to 5x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.
Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe-XE5-308S v4 is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe-XE5-308S v4 at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the CyberServe-XE5-308S v4 components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The CyberServe-XE5-308S v4 IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the CyberServe-XE5-308S v4 with up to 5x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe-XE5-308S v4 is a flexible platform for a wide-range of applications.
The added benefit of hot-swap hard drives means that the CyberServe-XE5-308S v4 can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.In today’s climate we appreciate the importance of preserving working capital yet understand that businesses still need to invest in new technology. We are delighted to inform our customers that Finance is available from just £1000 + VAT via our Strategic Partner BlueStar.
You can finance the total solution including hardware, software and installation costs and BlueStar will be happy to advise you of the most suitable package for your organisation.
BlueStar’s leasing options have enabled our customers to spread the cost of a new solution typically over a 3 year period. All payments made on a lease can be offset against taxable profits which may improve tax efficiency. Leasing also provides a flexible upgrade path allowing our customers to add further equipment to their lease throughout the term.
Finance helps to remove cash flow concerns and allows our customers to acquire the right system for their business rather than what available cash reserves dictate. Information technology is an operating cost to your business, pay for the equipment as you use it and get an immediate return on your investment.
Do you need to replace outdated equipment but don’t have the budget to purchase today?
Call us today on 020 8997 6000 to find out how leasing can work for you. Finance is subject to status and available to businesses only.
Leading Security
We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.
Best Price Guarantee
Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.
Ease of Management
Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.
Customer Service
Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centres!
Trouble-Free Integration
Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.
3-Year Warranty
All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.
Easy Installation
From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!
Standardisation
Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.
Flexibility
Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.
Scalability
Our servers are built to grow with your organization, whether that be by purchasing additional drives, or additional scale-out nodes.
Innovation
Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.
GSA Schedule Holder
We offer rapid GSA scheduling for custom configurations. For specific hardware requirements we can have your configuration posted on the GSA Schedule within 2-4 weeks.
By consolidating servers onto a VMware compatible Broadberry server, you can enjoy a reduction in your IT infrastructure footprint.
The virtualisation market has grown exponentially since the mid-2000s and as has the demand for servers able to run VMware virtualisation software. While the majority of servers will be able to run VMware, these rack servers have been specially designed and then sent off for VMware ESXI 6.0 certification.
Built from the ground up for compatibility, these servers are ideal for running your virtualised IT infrastructure.These VMware certified servers are based on hardware that is enterprise-grade and industry compliant. This range servers can be configured with up to 16 cores for processing and up to 1/2 TB of memory.
