The CyberServe XE5-R1208 Intel R1208WTTGSR is a 1U rackmount server configurable with 2x Xeon E5 2600v4 Dual Processor series range of processors. Built using the latest enterprise-class server technology, the CyberServe XE5-R1208 Intel R1208WTTGSR has 8x 2.5" 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 24x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The CyberServe XE5-R1208 Intel R1208WTTGSR boasts as just a few of its core features.

Powered by Intel Xeon E5 2600 v4 Processors

Powered by 2x Intel Xeon E5-2600 v4 processors, the boasts the latest processor technologies you'd expect from an enterprise-class server, including accelerating critical workloads such as database transactions and vector operations and more.

Key Features

• High Performance for the Broadest Range of Applications and Environment
• Advanced multi-core, multi-threaded processing (Up to 22 cores and 44 threads per socket)
• Larger cache and faster memory
  • Up to 55 MB of last-level cache (LLC) for fast access to frequently used data
  • Up to 24 DIMMs per two-socket server to support multiple data-hungry VMs
  • Faster maximum memory speeds than the previous generation (DDR4 2400 MHz versus 2133 MHz)
• Higher performance for technical computing and multi-threaded applications
• Industry-leading I/O performance
• Industry-leading energy-efficiency

The powerful new Intel^® Xeon^® processor E5-2600 v4 product family offers versatility across diverse data centre workloads.

With the full line-up of Intel Xeon E5-2600 v4 processors to choose from, the can be configured with up to 44 high-performance processing cores or 88 hardware threads, making this power-house server the ideal choice for a wide range of business applications from virtualisation to high-performance computing.

These processors are designed to help IT address the ever-growing demand for increased performance, agility, operational efficiency, scale-on demand and security throughout their server, storage and network infrastructure while minimising their total cost of ownership.

If you're upgrading from the past generation of E5 processors (v3 range), you'll notice major advances in processor technology in the resulting in up to 47% faster performance than the previous generation of servers powered by the v3 range.

The new v4 range of processors offers extra cores, a smattering of architectural refinements and performance advancements such as up to 55MB of last-level cache, support for 2400MHz DDR4 memory and up to 2kb of data L1 cache per processing core.

The powered by Intel^® Xeon^® processor E5-2600 v4 product family offers enterprises, cloud service providers and telecommunication service provider's high performance and value, while accelerating their move toward the next-generation efficiencies of software defined infrastructure.

Built for Virtualisation

Configured with the E5-2600 v4 processor and offering plenty of high-performance memory, the is built for virtualisation.

Intel^® Virtual Machine Control Structure (VMCS) shadowing extends root virtual machine monitor (VMM)-like privileges to a guest VMM to provide more flexible support for legacy code and deep security monitoring. Additional virtualisation enhancements enable fewer and faster transitions to the VMM through Posted Interrupts and other innovations, so more compute cycles can be devoted to virtual machine performance.

Support for Page Modification Logging has also been added to enable high-end availability for virtual machines while reducing performance overhead.

Process Data Faster with DDR4 Memory

Configurable with DDR4 memory, the CyberServe XE5-R1208 Intel R1208WTTGSR uses the latest enterprise-grade memory technology which offers 50% more bandwidth and 40% better energy efficiency than servers configured with DDR3 ram, resulting in more speed, more bandwidth and better efficiency computing.

Typically a server's greatest limitation is memory, especially in the memory-dependant applications the CyberServe XE5-R1208 Intel R1208WTTGSR has been designed to excel in such as cloud-computing, virtualisation and HPC. The CyberServe XE5-R1208 Intel R1208WTTGSR overcomes this traditional problem by doubling memory capacity of servers built on DDR3 memory in the same amount of DIMM slots making the CyberServe XE5-R1208 Intel R1208WTTGSR a super-dense server platform ready to perform in the most demanding applications.

DDR4 memory also builds on the CyberServe XE5-R1208 Intel R1208WTTGSR green credentials as power savings reach up to 40% over older generation memory.

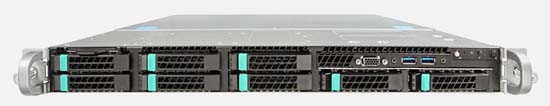

The added benefit of hot-swap hard drives means that the CyberServe XE5-R1208 Intel R1208WTTGSR can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. The added benefit of hot-swap hard drives means that the CyberServe XE5-R1208 Intel R1208WTTGSR can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Storage Technology

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The added benefit of hot-swap hard drives means that the CyberServe XE5-R1208 Intel R1208WTTGSR can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.

Configure for your Network

The CyberServe XE5-R1208 Intel R1208WTTGSR’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe XE5-R1208 Intel R1208WTTGSR to match your application I/O demands and network infrastructure with up to 4x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe XE5-R1208 Intel R1208WTTGSR is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe XE5-R1208 Intel R1208WTTGSR at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

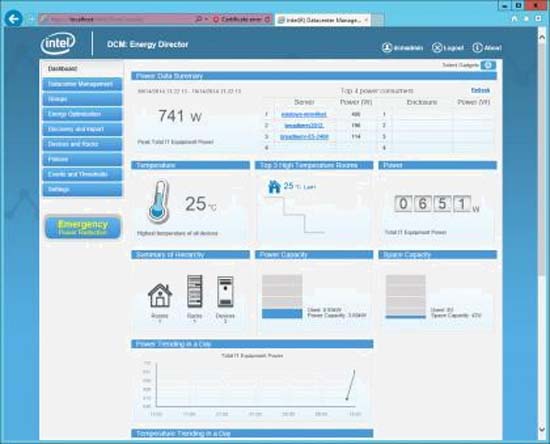

Check the health of the CyberServe XE5-R1208 Intel R1208WTTGSR components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

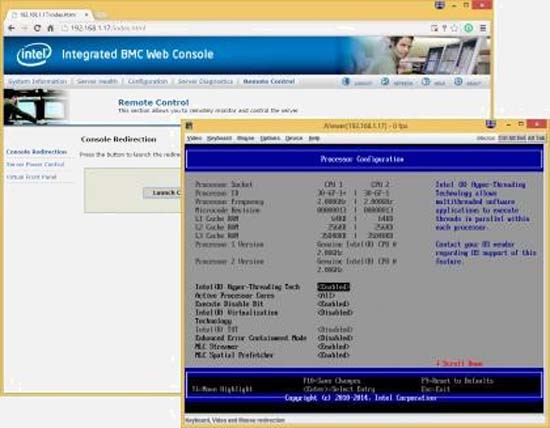

The CyberServe XE5-R1208 Intel R1208WTTGSR IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe XE5-R1208 Intel R1208WTTGSR with up to 4x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe XE5-R1208 Intel R1208WTTGSR is a flexible platform for a wide-range of applications.

The added benefit of hot-swap hard drives means that the CyberServe XE5-R1208 Intel R1208WTTGSR can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
